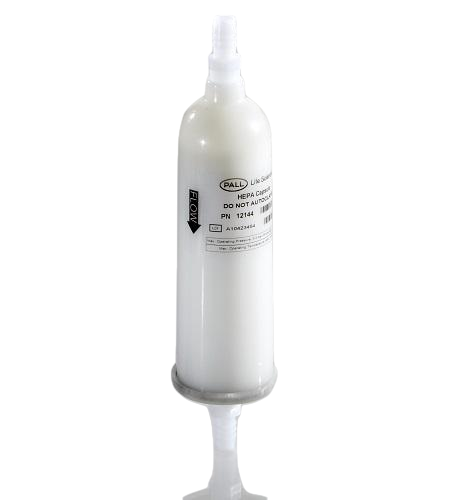

HEPA Capsule Versapor™ 1.2µm HB 1pk

Name: HEPA Capsule Versapor™ 1.2µm HB 1pk
SKU: 12144
Availability: InStock

Ensures high efficiency particulate-free air (HEPA)

SKU： 12144 分类：囊式滤器, 实验室耗材, 实验室过滤产品-滤纸、滤膜、滤器

询价

HEPA Capsule Versapor™, a Pall Life Sciences product, feature a porous membrane that delivers high air flow rates at low differential pressure and extends filter life

Ensures particulate-free air 99.97% retention of 0.3 µm DOP aerosol¹
¹Following ASTM D 2986-95A

Specifications

Materials of Construction

Filter Media: Versapor™ membrane (acrylic copolymer on a non-woven support)
Housing: Polypropylene
Filter Support: Polyester
Adapters: Nylon
Membrane Sealing Material: Polyurethane
Housing Sealing Material: Polypropylene-encapsulated stainless steel

Pore Size

Liquid Filtration: 1.2 μm
Air/Gas Filtration: 99.97% retention of 0.3 μm DOP aerosol²

Effective Filtration Area

860 cm²

Dimensions

Housing Length: 19.3 cm (7.6 in.)
Overall Length: 26.9 cm (11 in.)
Diameter: 6.3 cm (2.5 in.)

Inlet/Outlet Connections

3/8 in. FNPT; includes optional hose barb fittings to accept 12.7 mm (1/2 in.) ID tubing
Maximum Operating Temperature
88°C (190°F)

Maximum Operating Pressure

3.4 bar (340 kPa, 50 psi)

Biological Safety

Passes United States Pharmacopeia (USP) Biological Reactivity Test, In Vivo <88>

²Following ASTM D 2986-95A

Applications

Designed to provide bacteria-free air for sterile applications
Can be used for non-sterilizing liquid prefiltration

h

安全数据表搜索

搜索安全数据表文件。



证书搜索

搜索证书分析文件(CoA)，质量标准(CoQ)，符合性证书(CoC)

Connections	⅜” FNPT & hose barb
Effective filtration area	860 cm²
Membrane material	Versapor acrylic copolymer on a nonwoven support
Pack size	1
Removal Rating (µm)	1.2 µm
Sterile	Nonsterile
