MicroFunnel Plus filter funnels

Combined filter funnel and sample cup with increased protection from contamination

变体 Array 参考编号: 30050139

(仅支持询价)

变体 Array 参考编号: 30050180

(仅支持询价)

SKU： N/A 分类： , , ,

¥1,928.00 – ¥4,221.00

货号 规格描述 价格 数量 操作
4814 Funnel Capacity：300 mL
数量：20/pkg
Pore Size (Removal Rating)：0.45 µm
过滤介质：Supor PES
有效过滤面积：Other
Cover material：Other 		—
4808 Funnel Capacity：100 mL
数量：50/pkg
Pore Size (Removal Rating)：0.45 µm
过滤介质：Metricel black modified PES
有效过滤面积：Other
Cover material：Other 		—
4844 Funnel Capacity：100 mL
数量：50/pkg
Pore Size (Removal Rating)：0.45 µm
过滤介质：Supor PES
有效过滤面积：Other
Cover material：Other 		—
4859 Funnel Capacity：100 mL
数量：40/pkg
Pore Size (Removal Rating)：0.45 µm
过滤介质：Supor PES
有效过滤面积：Other
Cover material：Other 		—
4823 Funnel Capacity：100 mL
数量：50/pkg
Pore Size (Removal Rating)：0.45 µm
过滤介质：Supor PES
有效过滤面积：Other
Cover material：Other 		—
4829ME Funnel Capacity：Other
数量：Other
Pore Size (Removal Rating)：Other
过滤介质：ME25 mixed cellulose ester
有效过滤面积：13.46 cm²
Cover material：polystyrene 		—
4829 Funnel Capacity：300 mL
数量：20/pkg
Pore Size (Removal Rating)：0.45 µm
过滤介质：GN-6 MCE
有效过滤面积：Other
Cover material：Other 		—
4807ME Funnel Capacity：Other
数量：Other
Pore Size (Removal Rating)：Other
过滤介质：ME25 mixed cellulose ester
有效过滤面积：13.46 cm²
Cover material：polystyrene 		—
4825 Funnel Capacity：Other
数量：Other
Pore Size (Removal Rating)：Other
过滤介质：Other
有效过滤面积：Other
Cover material：Other 		—
4858 Funnel Capacity：300 mL
数量：20/pkg
Pore Size (Removal Rating)：0.45 µm
过滤介质：Supor PES
有效过滤面积：Other
Cover material：Other 		—
4857 Funnel Capacity：300 mL
数量：20/pkg
Pore Size (Removal Rating)：0.2 µm
过滤介质：Supor PES
有效过滤面积：Other
Cover material：Other 		—
4809 Funnel Capacity：100 mL
数量：50/pkg
Pore Size (Removal Rating)：0.2 µm
过滤介质：Supor PES
有效过滤面积：Other
Cover material：Other 		—
4807 Funnel Capacity：100 mL
数量：50/pkg
Pore Size (Removal Rating)：0.45 µm
过滤介质：GN-6 MCE
有效过滤面积：Other
Cover material：Other 		—
4845 Funnel Capacity：Other
数量：Other
Pore Size (Removal Rating)：Other
过滤介质：Other
有效过滤面积：Other
Cover material：Other 		—

产品详情

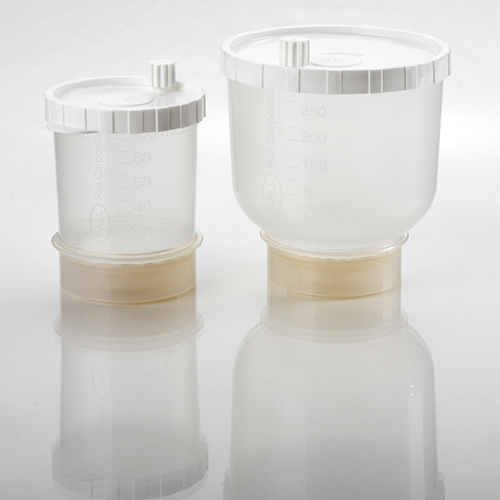

Microfunnel™ Plus filter funnels, a Pall Life Sciences product, are convenient, ready-to-use disposable filter funnels featuring increased protection from contamination for use in quality control analysis of aqueous fluids.

Product performs as sample container and filter funnel all in one. No need to transfer sample from cup to disposable funnel and risk introducing contamination.
MicroFunnel Plus AP unit allows aseptic collection of the sample through the lid sample port. No need to remove lid.
MicroFunnel Plus products with Supor™ membrane are designed to allow sampling of hot water up to 90°C.
Vented lid snaps to a liquid-tight seal and allows filtration without having to open the funnel and risk introducing contamination.
Vent filter ensures no airborne contamination is drawn into the funnel during filtration.
Attaches directly to a standard laboratory manifold or use with adapter and stopper.
Volume graduations are clearly marked for ease in measuring your sample volume.
Individually bagged and labeled for contamination control and lot traceability.

Materials of Construction

Filter Media: GN-6 Metricel™ (mixed cellulose esters), Supor™(hydrophilic polyethersulfone), and Metricel™ Black (modified polyethersulfone) membranes
Support Pad: Cellulose
Funnel and Base: Polypropylene
Adhesive Gasket: Urethane
Funnel Cover: Polyethylene with hydrophobic Versapor™ membrane (acrylic copolymer on a non-woven support)
Bag: Polyethylene
Adapter: Polyethylene
Plug: Polyethylene (PN 4807, 4808)

Effective Filtration Area

13.46 cm2

Dimensions

100 mL Funnel
Height: 7.6 cm (3.0 in.) with cover
Diameter: 6.1 cm (2.4 in.) with cover
300 mL Funnel
Height: 8.9 cm (3.5 in.)
Diameter: 8.7 cm (3.4 in.)

Maximum Vacuum

63.5 cm Hg (25 in. Hg) (vacuum use only)

Maximum Sample Collection Temperature

PN 4807, 4808, 4829: Ambient
PN 4809, 4814, 4823, 4843, and 4844: 90°C (194°F)

Gamma-Irradiated

Validated dose 15 – 30 kGy

New Improved Packaging

No mistakes—clearly labeled
Easy to peal—hermetically sealed
Secure during shipment—thermoform pack

Applications

Improves the efficiency of monitoring your water system while reducing the introduction of contamination.
Eliminates steps in sample collection and testing that could potentially contaminate your sample.
Gridded 0.45 μm GN-6 Metricel™ membrane is ideal for analysis of ambient water by Membrane Filter (MF) Technique.
MicroFunnel Plus with 0.45 or 0.2 μm Supor™ membrane is designed for sampling hot water (such as that found in hot loop WFI systems).
