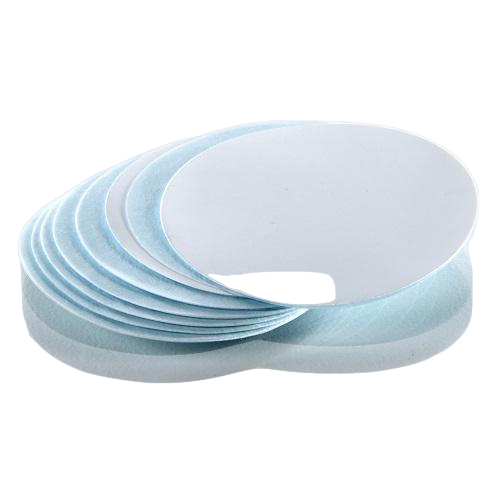

Nylaflo membrane disc filters

Filter Media

Hydrophilic nylon

Pore Size

0.2 and 0.45 µm

Typical Thickness

127 µm (5 mils)

Typical Water Flow RatemL/min/cm2 at 0.7 bar (70 kPa, 10 psi)

0.2 µm: 12
0.45 µm: 16

Maximum Operating Temperature – Water

100°C (212°F)

Minimum Bubble Point – Water

0.2 µm: 3.4 bar (340 kPa, 49 psi)
0.45 µm: 2.6 bar (260 kPa, 37 psi)

Applications

Useful for a wide range of applications. Offers broad chemical resistance to common solvents.
Not recommended for acids > 1 N or halogenated solvents.

Useful for a wide range of both aqueous and solvent-based applications. Excellent chemical compatibility with esters, bases, and alcohols. Available in 0.2 and 0.45 µm pore sizes, in diameters ranging from 13 to 142 mm.
