wwPTFE membrane disc filters

Name: wwPTFE membrane disc filters
SKU: 16961
Availability: InStock

Membrane with chemical compatibility for aqueous solutions and aggressive solvents

SKU： N/A 分类：滤膜, 实验室耗材, 亲水聚四氟乙烯（wwPTFE）膜, 实验室过滤产品-滤纸、滤膜、滤器

¥1,206.84 – ¥11,752.00

Pore Size (Removal Rating)

0.2 µm
0.45 µm

尺寸

2.5 mm
47 mm
50 mm
90 mm

数量

50/pkg
75/pkg

清除

货号

规格描述

价格

数量

操作

60547

Pore Size (Removal Rating)：0.45 µm
尺寸：2.5 mm
数量：50/pkg

¥1,206.84

60538

Pore Size (Removal Rating)：0.2 µm
尺寸：2.5 mm
数量：50/pkg

¥2,177.51

60548

库存紧张

Pore Size (Removal Rating)：0.45 µm
尺寸：47 mm
数量：50/pkg

¥1,240.74

60550

Pore Size (Removal Rating)：0.45 µm
尺寸：50 mm
数量：50/pkg

¥4,144.84

60551

Pore Size (Removal Rating)：0.45 µm
尺寸：90 mm
数量：75/pkg

¥11,752.00

60542

Pore Size (Removal Rating)：0.2 µm
尺寸：50 mm
数量：50/pkg

¥3,774.20

60539

库存紧张

Pore Size (Removal Rating)：0.2 µm
尺寸：47 mm
数量：50/pkg

¥1,240.74

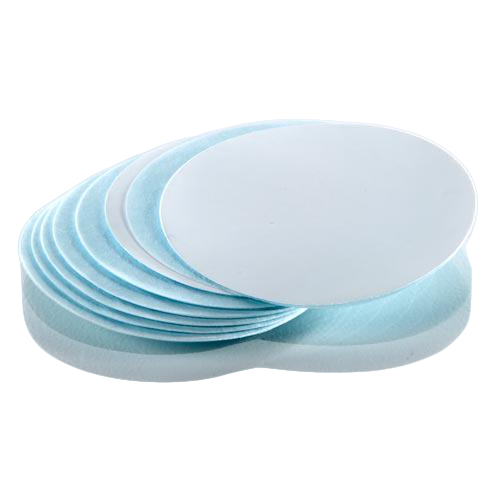

wwPTFE membrane disc filters, a Pall Life Sciences product, deliver chemical compatibility for aqueous solutions and aggressive solvents.

Maximum versatility. Filters aqueous solutions or aggressive chemicals.
Low protein binding membrane gives high recovery of critical proteinaceous samples.
HPLC certified. Provides assurance that the filter will not add artifacts to your analysis.
Low API adsorption.

Specifications

Filter Media

Hydrophilic polypropylene

Pore Size

0.2 and 0.45 µm

Typical Thickness

0.2 µm: 101 µm (4.0 mils)
0.45 µm: 114 µm (4.5 mils)

Typical Water Flow RatemL/min/cm² at 0.7 bar (70 kPa, 10 psi)

0.2 µm: 20
0.45 µm: 31

Maximum Operating Temperature

55°C (131°F)

Minimum Bubble Point – IPA

0.2 µm: 1 bar (100 kPa, 14.5 psi)
0.45 µm: 0.63 bar (63 kPa, 9.1 psi)

Applications

Our number-one choice for filtering HPLC mobile phases
Available in 0.2 μm for UHPLC
Suitable for pharmaceutical HPLC applications

Performance

wwPTFE Membrane is Virtually a Universal Membrane for All Applications

PTFE

Proteinaceous: –
General Aqueous: –
Non-Aggressive Organic: ++
Aggressive Organic: ++

PVDF

Proteinaceous: ++
General Aqueous: ++
Non-Aggressive Organic: +
Aggressive Organic: –

Nylon

Proteinaceous: +*
General Aqueous: ++
Non-Aggressive Organic: +
Aggressive Organic: –

++ Recommended
+ Suitable
– Not Recommended
* Dependent on protein type and concentration
